Most washrooms that have a grab bar installed still get it wrong. Not in the product choice, but in the placement. The bar ends up 15 cm too high, angled incorrectly, or bolted into the wrong wall material entirely. And here’s what nobody tells you: a misplaced grab bar can be more dangerous than having none at all. It trains the user to trust a support that isn’t where the body naturally reaches during a slip.
This guide fixes that. Exact heights. Precise angles. Wall compatibility rules. Zone-by-zone logic built around how bodies actually move in a bathroom, whether you’re fitting a single home bathroom or specifying an accessible washroom for a hotel, hospital, or commercial facility.
Why Installation Angle Changes Everything
A grab bar isn’t just a handle. It’s a biomechanical support tool. The angle it’s mounted at determines which muscle groups engage, how much grip load transfers to the wall, and whether the user can generate leverage when it matters most.
Three angles dominate real-world grab bar installations.
0 degrees (Horizontal) is ideal for lateral movement support. When someone transitions from sitting to standing, a horizontal bar at the right height allows a downward push-pull motion using the triceps and shoulder. This is the workhorse angle for toilet zones and seated shower applications, where the movement is always vertical and the user needs to push their body weight upward.
90 degrees (Vertical) is built for entry and exit transitions. When a person steps over a tub ledge or into a shower, the hand naturally reaches forward and upward. A vertical bar on the entry wall meets that instinct. But vertical bars offer no help for standing balance inside the shower. They’re grab-and-release tools, not stabilise-in-place supports.
45 degrees (Diagonal) is the underused option that most guides skip entirely. A diagonal bar serves two grip heights simultaneously. The upper end assists someone standing; the lower end assists someone seated or rising. For users who split time between a shower chair and standing, a single 45-degree bar on the side wall replaces two separate horizontal bars. That’s why it’s the preferred angle for elderly users and wheelchair transfers.
Here’s what most guides won’t say: the angle choice should follow the dominant movement, not the aesthetics of the wall.
Master Dimensions: Every Zone, Every Number
Grab bar diameter typically ranges from 300 mm to 1200 mm depending on zone and user need. The 32 mm diameter tube is the standard grip profile across most installations, offering a secure hold without straining the hand during extended use.
| Zone | Height From Floor | Grab Bar Diameter | Recommended Angle | Notes |
|---|---|---|---|---|
| Toilet, side wall | 84 to 91 cm | 600 to 900 mm | Horizontal | Centred at seated elbow height for push-up leverage |
| Toilet, front wall | 84 to 91 cm | 600 mm | Horizontal | Adds pull-up support; both bars required for compliance |
| Shower, entry wall | 183 to 213 cm | 300 to 600 mm | Vertical | 10 to 15 cm inward from door frame |
| Shower, side wall (standing) | 84 to 91 cm | 600 to 900 mm | Horizontal | Shift toward plumbing wall for better reach |
| Shower, side wall (chair user) | Lower end at 46 cm | 900 to 1200 mm | 45 degrees | Upper end at 107 cm; covers seated and standing |
| Shower, back or front wall | 84 to 91 cm | 600 to 900 mm | Horizontal | Optional for advanced four-wall setups |
| Bathtub, entry wall | 24 cm above tub rim | 300 to 600 mm | Vertical | Assists step-in and step-out transition |
| Bathtub, back wall (soaking) | 20 to 25 cm above deck | 600 to 900 mm | Horizontal or 45 degrees | 45-degree preferred for elderly users |
| Hallway or corridor | 84 to 91 cm | 900 to 1200 mm | Horizontal | Continuous support rail logic applies |
One note on the toilet side bar. The 84 to 91 cm range is the standard, but many home installations creep up to 95 to 100 cm because it feels more natural when standing. It doesn’t. It destroys the leverage angle when rising from a seated position. Stick to the standard.
Zone-by-Zone Placement Logic
Toilet Zone: Why Two Bars Are the Baselines?
Two grab bars minimum at every toilet. One is a decoration; two is a system. The side wall bar handles the standing transition, giving the user something to push against. The front wall bar handles the final push when lateral leverage alone isn’t enough, which happens more often than most people expect, especially for elderly users with reduced lower-body strength.
Place the side bar so its far end extends at least 30 cm past the front edge of the toilet seat. This ensures the hand has reach during the full arc of standing up, not just at the start of the movement.

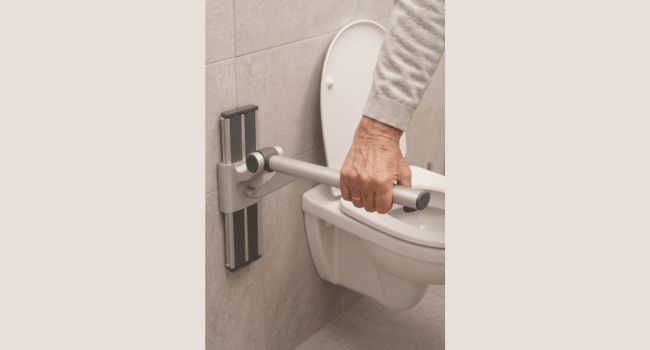

For wheelchair users, a swing-type grab bar is the correct choice. Fixed horizontal bars at 84 cm block lateral wheelchair transfers. A foldable swing bar parks flush against the wall when unused and rotates down to the precise position when needed, keeping the transfer path clear.
Shower, Entry Wall: The Highest-Impact Position
This is the single most important grab bar placement in the entire washroom. More falls happen at shower entry and exit than anywhere else, at the exact moment when full body weight shifts to one leg on a wet surface. A vertical grab bar here isn’t optional. It’s structural.
Mount it 10 to 15 cm inside the door frame, not flush with it. That inward offset ensures the hand doesn’t collide with the door hardware mid-grip, which can cause the user to lose their hold at the worst possible moment.
Shower, Side Wall: The Diagonal Advantage
For standard standing use, a horizontal bar at 87 cm handles most situations. But if the user also uses a shower chair, install a 45-degree diagonal bar instead. Run it from 46 cm at the lower end up to 107 cm at the upper end. One bar, two functions, no compromise.
Position it toward the plumbing wall, the wall with the showerhead controls. This gives the standing user grip coverage directly under the water flow, which is exactly where balance is needed. A 900 to 1200 mm bar works best for diagonal installs because the longer tube gives the seated user a lower grip point without the upper end sitting too high for a standing user.
Bathtub Zones: Entry and Interior
The bathtub entry wall is non-negotiable: a vertical bar, 300 to 600 mm length, positioned 24 cm above the outer tub rim. The typical tub lip sits 35 to 40 cm off the floor, which means the user is stepping over a thigh-height barrier on one leg, often on a wet surface. That’s why this bar carries so much load when it’s used.
For soaking tubs, a second bar on the back wall at 45 degrees helps elderly users transition from fully reclined to upright without using the tub rim as a handhold. Tub rims aren’t structural. They crack. People fall.
Bar Shape Selection: Matching Form to Function
Straight bars cover most zones. But L-shaped and U-shaped configurations handle specific movement patterns that a straight bar can’t.
Straight bar (300 to 1200 mm). The default for most zones. Works horizontal, vertical, or diagonal. Clean, versatile, and available in the widest length range to suit any wall width or user height.
L-shaped bar. Combines a vertical and horizontal grip in one unit at the entry wall of a shower. The vertical section handles the entry transition; the horizontal section handles standing balance once inside. No need for two separate installs at the same corner, which reduces anchor points and wall penetrations.
U-shaped bar. Adds symmetrical bilateral grip near the toilet, with handles on both sides of the central mounting. Particularly useful for users who need support from both arms when standing, rather than pushing from one side only.
Swing bar. Folds flat against the wall when not in use. The right solution wherever clear floor space matters, primarily wheelchair-accessible toilets and compact bathrooms where a fixed horizontal bar would obstruct movement.
Wall Type Compatibility and Anchor Safety
Why Does Wall Material Decide Everything?
Getting the placement angle and height right means nothing if the bar pulls out of the wall under load. And it will pull out if the wrong anchor goes into the wrong material. This is the step most residential installations skip, and it’s the reason most grab bar failures happen.
The rule is simple: the anchor must reach solid structural material. Not tile, not grout, not plaster. Solid material behind the surface.
Wall Type Comparison: What’s Safe and What Isn’t
| Wall Type | Safe for Grab Bar? | Required Anchor | Key Risk |
|---|---|---|---|
| Solid concrete | Yes, fully safe | Concrete anchor bolt, 8 to 10 mm | None if correctly drilled |
| Solid brick | Yes, fully safe | Masonry anchor bolt | Avoid drilling into mortar joints |
| Cement board | Yes, fully safe | Cement board anchor | Confirm board thickness before drilling |
| Tile over concrete | Yes, with correct drill method | Diamond bit through tile, then masonry anchor | Never use hammer mode through tile |
| Wooden stud behind drywall | Yes, if anchored into stud | Lag bolt, minimum 65 mm into stud | Must locate stud precisely; drywall alone will fail |
| Hollow drywall (no stud) | Never | No standard anchor works safely | Bar will rip out under body weight |
| Hollow concrete block | Never | Cannot support lateral load | Core fill required before installation |
| Glass or acrylic panels | Never | Not applicable | Will shatter under grip load |
How to Identify Your Wall Type Before Drilling?
Knock firmly on the wall with your knuckle at each planned anchor point. A dense, solid sound means concrete or brick. A hollow resonance means drywall or hollow block. If the result is drywall, use a stud finder to locate the timber framing behind it. Every anchor point must land in solid material. If even one anchor point is hollow, reposition the bar rather than compromising the anchor.
Why The Tile Drilling Rule Most Installers Get Wrong?
Drilling through ceramic tile requires a diamond-tipped drill bit in rotary mode only. Hammer mode cracks tile from the inside out, and the crack won’t always show until the tile shifts under load weeks later. Place masking tape over the drill point to prevent the bit from skating across the glazed surface. Once through the tile, switch to a masonry bit in hammer mode to finish the hole into the concrete behind it. Then insert the anchor, mount the flange, and torque the bolts until the flange sits flush with zero gap. Not tighter. A flanges that’s over-torqued strips the anchor thread and creates micro-fractures in the tile around it.
Residential vs Commercial Grab Bar Placement: Key Differences
This distinction matters practically, not just technically. The placement logic differs between a home bathroom and a public or commercial washroom because the user population, regulatory requirements, and failure consequences are completely different.
| Factor | Residential Placement | Commercial Placement |
|---|---|---|
| Who decides placement? | User’s discretion and comfort | Regulatory standards (ADA, NBC, BIS) |
| Height standard | Flexible; adjust to individual user | Fixed ADA range: 84 to 91 cm, non-negotiable |
| Number of bars required | Recommended minimum; user’s choice | Mandatory minimum; legally required |
| Shower type specification | Any configuration | Transfer shower (91×91 cm) or roll-in shower (76×152 cm) have separate bar requirements |
| Swing bars at toilet | Recommended for wheelchair users | Mandatory in accessible toilet compartments |
| Inspection requirement | None typically | Certificate of Occupancy requires grab bar compliance sign-off |
| Material standard | Any rated bar | Commercial-grade load capacity; stainless or nylon rated for high-frequency use |
For hotels, hospitals, airport washrooms, and senior care facilities, grab bar placement is not a design choice. It’s a compliance requirement. A bar installed 5 cm outside the mandated zone fails inspection, delays occupancy, and creates liability. Residential projects have more flexibility, but the biomechanical principles remain identical. The standard exists because it works.
Why Should You Run a Live Simulation Before You Fix Anything Permanently?
This is the step that separates a professionally specified grab bar layout from a guesswork installation. Before drilling a single anchor point, run a physical simulation with the person who will actually use the bars.
Have them walk through every movement they perform in that bathroom: stepping into the shower, sitting and standing from the toilet, stepping over the tub edge, adjusting the showerhead. Watch exactly where the hand reaches naturally during each transition. That’s where the bar goes.
Three things you’ll catch during simulation that no measurement guide can predict:
Reach range varies by user. A person with limited shoulder mobility reaches significantly shorter than the standard 84 to 91 cm side-reach assumption. If the bar is at the textbook position but 20 cm beyond their natural reach, it fails the moment they need it.
Dominant hand preference changes bar position. A left-handed user approaching the toilet from the right side needs the side bar mirrored. Simulation catches this immediately; a spec sheet won’t.
The entry point shifts with footwear and mobility aids. A user who walks with a cane approaches the shower entry differently than one who doesn’t. Simulation with their actual mobility aid in hand shows exactly which side the entry bar needs to be on and at what height the hand naturally lands.
Run the simulation. Mark the wall with tape where the hand naturally falls at each critical point. Then place the bar at those marks, verify against the dimension standards in the table above, and adjust only if the simulation position falls outside the safe structural zone.
Placement Mistakes That Quietly Cause Falls
Mounting too high for standing comfort. Arms extended upward cannot generate downward leverage. The bar feels natural during a casual reach but fails completely when the user needs push-up force from a seated position. The standard range exists for this reason.
Installing only one bar next to the toilet. A single side bar creates one-directional support in a movement that requires two. The front wall bar isn’t supplementary. It’s part of the system, especially for users with asymmetric strength or limited grip.
Placing a vertical bar inside the shower interior. Vertical bars are entry and exit tools. Inside the shower, the user reaches sideways and downward during balance recovery, not forward and upward. A vertical bar in that zone gives nothing to grip during an actual slip.
Drilling anchors into grout joints. Grout is softer than tile and degrades faster under the constant micro-movement that body-weight loads create. Anchors in grout loosen within months. Always drill through the face of the tile.
Skipping the load test after installation. Every grab bar installation ends with a full body-weight pull test in every direction: outward, downward, lateral, and rotational. Zero movement, zero sound, zero flex. If anything shifts at all, the bar comes out and gets reinstalled with correct anchors before the bathroom is used again.
Adjusting for Different User Profiles
The dimensions above are the correct starting points. But the person using the bar is the final variable.
User height. Taller users typically need horizontal bars 2 to 3 cm higher than the standard range. Shorter users, including many elderly women, often need them 2 to 3 cm lower. The standard range is wide enough to accommodate most adults, but always verify against the individual.
Grip strength. Users with reduced grip strength benefit from a textured surface rather than smooth stainless. A 900 mm bar also gives more room for the hand to find a secure position compared to a 300 mm bar, reducing the precision required during a stressful moment.
Multi-user households. When one bathroom serves both elderly and able-bodied users, a 45-degree diagonal bar is the most versatile single solution. It works for standing balance and seated transitions without looking clinical or out of place.
Children. A secondary horizontal bar at 60 cm on the shower side wall gives younger users a reachable grip without compromising the adult-height bar positioned above it.
Final Thought
Grab bar placement is a precision decision at every stage: the angle, the height, the wall material, the anchor type, and the specific movement pattern of the person using it. Getting four of those five right and missing one is enough for the system to fail at the moment it’s needed most.
Run the simulation before you drill. Match the anchor to the wall. Keep the heights in the standard range. Load-test before use. That framework holds whether you’re outfitting a single home bathroom or specifying an accessible washroom across an entire hotel floor.
The product itself rarely fails. The placement does.
