PVC pipe fittings charts are essential connectors in plumbing. They join different pipes. They also connect pipes to fluid control components. These fittings are vital for plumbing infrastructure. They serve many other system applications. Each fitting type has a unique function. They come in diverse dimensions. Understanding their purpose simplifies repairs. Correct installation becomes easier. PVC is lightweight. It is also durable. This makes it a preferred material in construction.
Proper fitting selection is crucial. It helps avoid leaks. It prevents system damage. The right choice improves efficiency. It also extends the system’s lifespan. PVC fittings ensure plumbing is smooth. They offer reliable performance. They provide solutions for small adjustments. They also work for large construction projects. Careful selection of fittings ensures toughness. It guarantees effectiveness. Proper use saves time. It saves effort. It reduces costs.
Understanding PVC Pipe Sizes and Schedules
PVC pipe sizes can be confusing. The size on the label is the nominal size. This refers to the inner diameter. For example, a one-inch fitting fits a one-inch pipe. The outer diameter might measure more. Compatibility is key. Schedule 40 and Schedule eighty pipes are distinct. They have extraordinary wall thicknesses. You ought to use fittings designed to your particular pipe schedule. Always double-take a look at sizes earlier than buying. This simple step avoids installation problems.
Connection Types: Slip vs. Threaded Fittings
PVC fittings connect in several ways. The most common methods are slip or threaded connections. Slip fittings slide over the end of a pipe. They require an adhesive to create a permanent bond. PVC cement is the standard adhesive for this job. It chemically welds the plastic of the pipe and fitting. This process forms a sturdy, watertight seal.
Threaded fittings are different. They are detachable. They use threads to screw together. These are ideal for connections that might want future changes. PTFE thread tape, also called plumber’s tape, enables make sure a watertight seal on those threaded joints. For slip connectors, you have to usually start with a PVC primer. The primer cleans and prepares the plastic surfaces for bonding. After priming, you apply the cement. This right education is the first-class way to save you leaks. It ensures a long lasting, long-lasting connection.
Furniture Grade vs. Standard PVC Fittings
Furniture-grade fittings are aesthetically one of a kind from everyday PVC fittings. They do not have business markings or barcodes. This gives them a clean, polished appearance. They are ideal for initiatives wherein the pipes can be visible. Common uses encompass furnishings, crafts, and retail shows. Despite the visible difference, their electricity is similar to traditional fittings. Both sorts are like minded. They fit the equal pipe sizes. You must select fixtures-grade fittings whilst appearance is a concern for your mission.

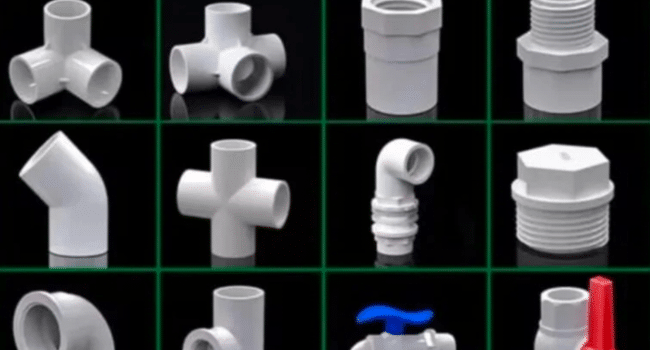

Common PVC Fittings: Descriptions and Applications
PVC fittings are available in many designs. Each design serves a specific role in a piping system. Below are common fittings. Their applications are explained in detail.
Tees
A Tee fitting connects three pipes. Has one outlet that branches off at a ninety-diploma perspective from the primary line. Tees split fluid flow into two separate directions. They can also combine two flows into one. These fittings are widely used in plumbing supply lines. They are also common in structural PVC projects.
Elbows
Elbows change the direction of a pipe run. They are to be had in 45-diploma and 90-diploma angles. They manual pipelines easily round corners or obstacles. These fittings are essential when pipes must fit into tight spaces. They help maintain an organized and efficient layout.
Crosses
Cross fittings connect four pipes. They form a shape like a plus sign. These are less common than tees. They are typically used in irrigation systems. They also find use in building frameworks. Cross fittings divide flow into three directions or combine three flows into one.
Couplings and Unions
Couplings connect two sections of pipe. They create a continuous, straight line. Compression couplings and slip couplings are available. Each suits different repair or installation needs. Unions function like couplings. The key difference is that unions are removable. You can unscrew a union. This makes maintenance, cleaning, or system assembly much easier.
Caps and Plugs
Caps and plugs stop the flow at the end of a line. A cap fits over the external end of a pipe. A plug fits inside a fitting opening to block it. Both are essential for sealing pipe systems. They provide safety and maintain system integrity during testing or future expansion.
Adapters
Adapters connect pipes or fittings of different types. They might connect a threaded end to a slip end. They can also connect PVC to a different material like copper. Female adapters have internal threads. Male adapters have external threads. These fittings provide great versatility for complex connections.
Bushings
Bushings reduce the size of a fitting. They make it possible to connect a larger pipe to a smaller one. A bushing fits inside a larger fitting to create a smaller opening. They often come threaded. This ensures a tight, secure seal between different pipe sizes.
Nipples
Nipples are short connectors. They have male threads on both ends. They are used to link two female-threaded fittings. They can also extend the length of a connection.
Flanges
Flanges create strong, bolted connections. They are used to join pipes to heavy equipment. Examples include tanks, pumps, or valves. A flange provides a secure and stable joint. It is often used in industrial and commercial applications.
Specialized PVC Pipe Fittings
Beyond popular components, specialized fittings serve essential features in unique systems. These are regularly designed for drainage, waste, and vent (DWV) applications.
What are Drain-Waste-Vent (DWV) Fittings?
DWV fittings are important for sewer and drain systems. They cope with fluid at low strain. They rely on gravity to move waste. Their interiors are smooth. This layout minimizes the threat of clogs. They are critical for practical underground pipelines.
- Sanitary Tee: This tee has a curved shape. It helps waste flow easily in a drainage device. It directs waste downward.
- Sweep Elbow: Sweep elbows have a gentler curve than preferred elbows. This design enables clean liquid flow. It appreciably reduces the risk of blockages in drain strains.
- Closet Flange: A closet flange connects a rest room to the ground pipeline. This fitting ensures a leak-proof seal for the waste line.
- Clean-Out: Clean-outs offer access factors in a drainage gadget. They simplify maintenance. Plumbers can use them to clean blockages. They do no longer need to dismantle the pipe system.
