There is much rich media served over modern web platforms, amounting to billions of gigabytes each day. In order to stream HD video effectively without placing strain on the server and ensuring asset protection, social networks such as Instagram make use of advanced front-end architecture.
Server-side Reverse Proxies: The client sends the media URL to its own backend setup (Node.js, Python, and Go). As server-to-server HTTP requests do not have any restriction of CORS, it pulls out the media from the server and sends it back to the client as a binary stream.Serverless-side Edge Functions: Small functions (Cloudflare Workers and AWS Lambda@Edge) intercept the request, fetch the media, and add Access-Control-Allow-Origin: * to the response before sending it to the browser.
1. Document Object Model (DOM) Parsing and Hydration Inspection
Page structure analysis is at the beginning of any web extraction tool, such as for an instagram video download online process. In modern social networks, the architecture of web interfaces is implemented via SPA architecture based on frameworks such as React. Initially, loading the page, the HTML footprint of the page is very small and needs JavaScript hydration of the DOM.
Extraction tools inspect three primary locations within the rendered page:
HTML5 <video> Elements – Crawls will traverse the DOM for standard <video> tags and examine the src attribute for media sources. Open Graph Metadata – Open Graph tags are commonly specified in the <head> section of HTML to provide a preview for a shared link on various messaging channels. (e.g., <meta property= “og:video” content = “…”) Embedded JSON Payload– Rather than triggering an additional network request to load the primary data during the initial visit, systems directly implant a raw blob of the internal state into an inline <script> tag. Crawls analyze the codeblocks to deserialise the JSON and access the embedded media.
2. Tokenized CDN URL Isolation
Media assets are rarely hosted as static files on root servers. Instead, platforms distribute media across edge networks using dynamic, time-limited, and authenticated URLs.
When an extractor locates a target asset, it isolates a signed CDN endpoint URL (such as nodes on cdninstagram.com). URLs include lots of query parameters including hash signatures, access tokens, and timestamps. The extraction tool will strip off all other web parts from the package and provide the real CDN resource URL.
3. Mitigating Cross-Origin Resource Sharing (CORS)
Cross-Origin Resource Sharing (CORS), which is the security policy incorporated within the web browser, will ensure that no request will be made from any web page to any domain other than the origin domain of the web page.
This is because the limitations are placed on the HTTP header fields of media CDNs (Access-Control-Allow-Origin), therefore the client-side JavaScript on the third party domain will not be able to fetch the binary files from the CDN.
To route around client-side origin restrictions, extraction architectures deploy two common network patterns:
- Server-side Reverse Proxies: The client sends the media URL to its own backend setup (Node.js, Python, and Go). As server-to-server HTTP requests do not have any restriction of CORS, it pulls out the media from the server and sends it back to the client as a binary stream.
- Serverless-side Edge Functions: Small functions (Cloudflare Workers and AWS Lambda@Edge) intercept the request, fetch the media, and add Access-Control-Allow-Origin: * to the response before sending it to the browser.
4. Reconstructing Adaptive Media Streams (MSE and Blobs)
During the analysis of the video components in web applications, the attribute “src” is used with a URI scheme with the prefix blob:, not the HTTPS:// protocol URL.
The MSE technology is applied to enable adaptive bitrate streaming (for instance, DASH and HLS protocols). Instead of sending one continuous file MP4, the server sends small binary fragments of the video file (.m4s or .ts)

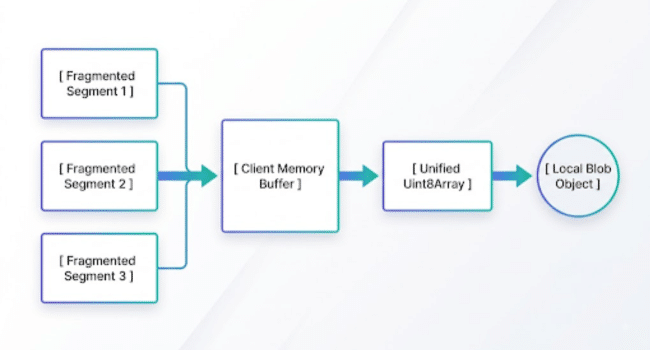

To reassemble these segmented streams into a cohesive, downloadable file, web tools perform the following operations:
- Segment Interception The tool captures incoming network requests for sequential stream segments.
- Concatenation of Buffer:
- Utilizing the typed arrays of JavaScript (Uint8Array for instance), the individual pieces of data are merged together consecutively in the browser memory.
- Creation of Blob Object
- The combined array is put inside a Blob object with its MIME type (video/mp4) specified. The program creates a local temporary URL using URL.createObjectURL().
5. Architectural Comparison: Client-Side Parsing vs. Headless Automation
Depending on page complexity and anti-bot mitigation protocols, extraction systems operate on two distinct architectural models:
| Architectural Metric | Client-Side JS Parsing | Headless Browser Automation |
| Execution Environment | Client browser runtime | Server-side container (Puppeteer, Playwright) |
| Resource Overhead | Very Low (Minimal compute cost) | High (Requires RAM/CPU for browser rendering) |
| Parsing Capability | Limited to visible payload / initial state | High (Executes JS, handles dynamic DOM updates) |
| Latency | Near-Instantaneous | Slower (Requires full page load & render cycles) |
Client-side parsing is optimized for speed and low operational costs, relying on pattern matching against initial payloads. Conversely, headless automation provides higher resilience against changing front-end code bases by fully rendering target web pages within containerized browser environments to log network traffic natively.

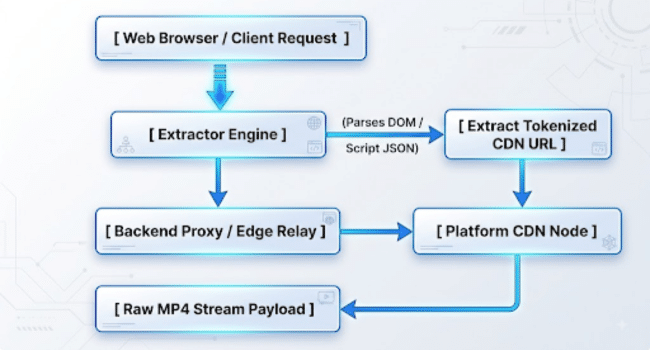

Summary of the Technical Pipeline
The workflow of browser-based media extraction can be summarized into five key operational phases:
- Target Identification: The system accepts a canonical URL and resolves its unique media identifier.
- Payload Parsing: Utility scripts extract tokenized media references from inline JSON objects or DOM elements.
- CORS Navigation: Network calls route through proxy layers or edge workers to satisfy browser cross-origin policies.
- Binary Reconstruction: Segmented media chunks (when using MSE) are collected and concatenated into a unified binary memory buffer (Blob).
- DOM Download Trigger: The web utility injects a temporary HTML <a> element configured with a download attribute and triggers a programmatic click event to invoke the browser’s native file-saving process.
Final Thoughts
Browser-based media extraction highlights the versatility of core web standards. Rather than cracking proprietary storage systems, these tools utilize fundamental front-end mechanisms: DOM parsing, proxy request routing, client-side buffer management, and standard browser storage APIs—often making an instagram video download online process seamless through client-side scripting. As web architectures continue to transition toward complex streaming protocols and server-driven hydration models, extraction utilities adapt their client-side pipelines to interface cleanly with modern web delivery systems.
