Modern home design increasingly emphasizes the seamless blur between indoor comfort and outdoor living. Architectural features like bi-fold glass walls, multi-panel sliding patio doors, and French double doors have transformed traditional living rooms, kitchens, and dining areas into expansive, sunlit spaces. However, bringing the outside in presents a persistent challenge: insects, harsh solar glare, and debris entering the home when doors remain open.
Traditional fly screens often compromise these architectural marvels. Fixed screens block panoramic views, heavy sliding screen frames clutter clean doorway lines, and standard spring-loaded roll-up screens can snap back violently or bind across wide spans.
The Custom Folding Screen Door (also known as a Pleated Insect Screen or Accordion Fly Screen) by Retract Screens provides the elegant engineering solution modern homeowners require. Utilizing high-tensile pleated mesh technology, precision cord guidance systems, and barrier-free threshold tracks, folding screen doors deliver insect protection, effortless operation, and invisible storage across wide spans.
1. Understanding Pleated Mesh Technology
Unlike traditional retractable screens that rely on spring-loaded internal rollers to roll the screen mesh onto a central cylinder, folding screen doors utilize pleated mesh mechanics.
The Accordion Principle
The screen fabric is pre-formed with uniform, crisp accordion pleats. When pushed open, the fabric collapses neatly into a compact side cassette housing. When pulled closed, the pleats expand evenly across the doorway opening.
Tension-Free Cord-Guided Operation
Because pleated screens do not use spring-loaded tensioning rollers, the screen moves with zero resistance. A network of ultra-high-strength internal tension cords guides the screen along top and bottom channels. This tension-balanced system allows the screen handle to stop smoothly at any position along the track without springing back or slamming shut—a crucial safety and convenience feature for households with children and pets.
Space-Efficient Stacking Ratio
The pleated structure achieves a compact stacking ratio. Even across openings spanning 10 to 20 feet wide, the retracted mesh stack occupies only a few inches of side space, keeping almost 100% of your architectural doorway completely clear.
2. Structural & Architectural Features
Retract Screens crafts each folding screen door system with industrial-grade materials engineered for daily usage, high traffic, and severe weather exposure.
1. Extruded Architectural Aluminum Framing
The frame components are constructed from high-tensile extruded aluminum alloy (6063-T5 / 6061-T6). Aluminum offers superior structural rigidity over plastic or thin vinyl alternatives, preventing frame deflection over wide spans.
Powder-Coated Finish: The aluminum profiles undergo a multi-stage powder-coating process, making them resistant to corrosion, chipping, flaking, salt spray, and UV fading.
Color Compatibility: Available in versatile architectural finishes—including White, Black, Modern Gray, and Bronze—to match existing door frames and window trims seamlessly.
2. High-Tensile PET/Fiberglass Pleated Mesh
The mesh fabric is crafted from a high-density poly-fiber weave designed to maintain structural memory and crisp pleat shape year after year.
UV & Thermal Resistance: Specially treated to withstand prolonged direct sunlight exposure without stretching, sagging, or degrading.
Tear and Scratch Resistance: The durable weave resists accidental impacts from pets or light wind gusts while maintaining micro-mesh density to block gnats, mosquitoes, flies, and midges.
High Transparency & Visibility: Black and charcoal mesh tones absorb light reflections, providing clear, glare-free views of your yard, pool, or patio.
3. Barrier-Free / Ultra-Low Profile Bottom Track
Traditional screen door tracks create high threshold steps that cause tripping hazards and impede wheeled access. Retract Screens folding doors utilize an ultra-low profile bottom track option.
Profile Height: Standing at a minimal height (typically 3 mm to 5 mm), the track creates a smooth transition between indoor hardwood/tile flooring and outdoor decking or pavers.
Accessibility Approved: Wheelchairs, strollers, and walker wheels roll smoothly over the threshold without resistance.
4. Full-Length Magnetic Closure Strip
To guarantee a bug-tight seal, the leading handle edge features a continuous full-height magnetic strip. When closed, the handle snaps onto the opposite side frame or matching double-door handle, sealing the entire vertical height without leaving gaps for crawling or flying pests.
3. Ideal Door Applications & Configurations
Folding screen doors excel across wide, non-standard, or difficult-to-screen openings where traditional screens fail.
Large Bi-Fold & Folding Glass Walls
Bi-fold glass doors open up whole walls, but finding a functional insect screen for an 8-to-20-foot opening can be difficult. A double center-closing or multi-panel folding screen door spans these massive distances effortlessly, providing a complete bug barrier when glass panels are folded away.

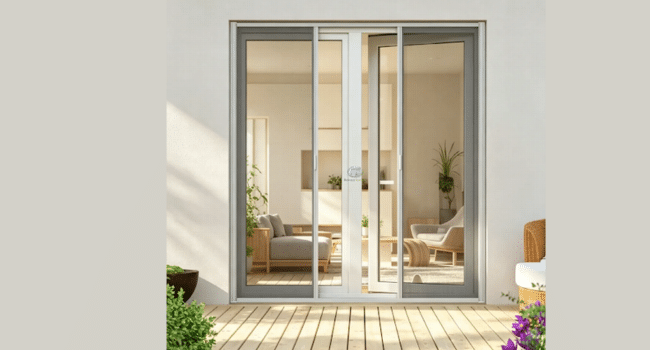

French Double Doors
For outward-opening or inward-opening French doors, a dual-panel folding screen mounts neatly to the exterior or interior jamb. You can open one screen panel for everyday passage or open both panels to enjoy the full width of the double doorway.
Multi-Slide Patio & Pocket Doors
Sliding patio door systems often suffer from heavy, binding screen doors. Replacing a traditional sliding screen with a smooth-gliding pleated screen restores easy opening and closing while eliminating unsightly metal screen frames.
Covered Porches, Verandas, and Balconies
Folding screen doors can be surface-mounted directly to exterior porch posts or balcony openings, creating temporary screened-in porch spaces on demand.
4. Configuration Options
Retract Screens offers flexible configurations tailored to your specific architectural layout:
| Configuration Type | Operational Mechanics | Best Suited For |
| Single Panel System | One screen cassette mounted on the left or right side, extending across the entire width to lock into a vertical receiver profile. | Standard entry doors, single sliding doors, narrow French doors (up to ~4.5 ft / 1.4 m wide). |
| Double Panel System (Center-Closing) | Two screen cassettes mounted on opposite jambs, meeting in the center with a full-height magnetic latch. | French doors, multi-slide patio doors, bi-fold doors (spanning widths up to 16–20+ ft / 5–6 m). |
| Bilateral / Free-Sliding System | The screen mesh stack is not fixed to either jamb and can slide freely to either side of the opening as needed. | Flex-space openings, bi-fold doors where access points change frequently. |
5. How to Measure for a Custom Folding Screen Door
Precision measurement ensures your made-to-measure screen fits your doorway opening without gaps or operational binding.
Step 1: Select Your Mount Type
Recess Mount (Inside Frame): The screen frame installs directly inside the door jamb depth. This requires a minimum clear jamb depth (typically 1.5 to 2 inches) free of handle obstructions or lock hardware.
Face Mount (Outside Frame): The screen frame installs onto the surface surrounding the door frame (trim, brick, or siding). Ideal when interior jamb depth is insufficient.
Step 2: Measure Width (W)
Measure the horizontal width inside the frame at three locations:
W1: Across the top header.
W2: Across the middle.
W3: Across the bottom threshold.
Record the smallest measurement to ensure the custom frame slides smoothly into the opening.
Step 3: Measure Height (H)
Measure the vertical height from the finished floor to the top header at three locations:
H1: Along the left jamb.
H2: Down the center.
H3: Along the right jamb.
Record the smallest measurement.
Step 4: Verify Squareness & Floor Levelness
Use a spirit level to check whether the threshold and jambs are plumb and level. Note any significant floor slopes or bowed headers so adjustments can be made during bracket installation.
6. Installation & DIY Setup Overview
Retract Screens folding screen door kits ship complete with factory-assembled screen cassettes, pre-threaded tension cords, top and bottom tracks, side jamb profiles, and mounting hardware.
Summary Installation Steps:
Unbox & Layout: Place frame components on a clean, padded surface to avoid scratching the powder-coated finish.
Frame Joinery: Connect the top guide rail and bottom threshold rail to the side jamb cassettes using supplied corner brackets.
Position Assembly: Frame the screen assembly inside the opening (Recess Mount) or against the exterior casing (Face Mount).
Fasten Framework: Secure side profiles and top tracks using wood or masonry fasteners, checking for plumb alignment with a level.
Adjust Cord Tension: Fine-tune internal tension cord stops to ensure the screen handle glides smoothly and stays stationary wherever released.
Test Latching: Ensure the magnetic closure snaps securely from top to bottom.
7. Cleaning, Care, and Maintenance Protocol
Retract Screens products require minimal maintenance. Following a simple seasonal care routine keeps your folding screen door operating like new for years.
Because the mesh is pleated, dust and pollen can collect inside the folds over time.
Vacuuming: Extend the screen fully and gently run a vacuum cleaner with a soft dusting brush attachment down the vertical pleats from top to bottom.
Washing: For persistent dirt, wipe the mesh fabric lightly using a clean microfiber cloth moistened with lukewarm water and a small amount of mild, non-abrasive liquid soap.
Drying: Allow the mesh to dry completely in the open position before retracting it back into the cassette housing.
Track Maintenance
Keeping the bottom guide track free of debris protects internal cord guides from wear.
Sweeping & Vacuuming: Regularly sweep or vacuum sand, small stones, pet hair, and dried leaves out of the bottom track channel.
NO Heavy Grease: Do not apply heavy wet lubricants, WD-40, or grease to the tracks. These attract dirt and build up abrasive sludge. If lubrication is needed, use a light spray of dry silicone lubricant once per year.

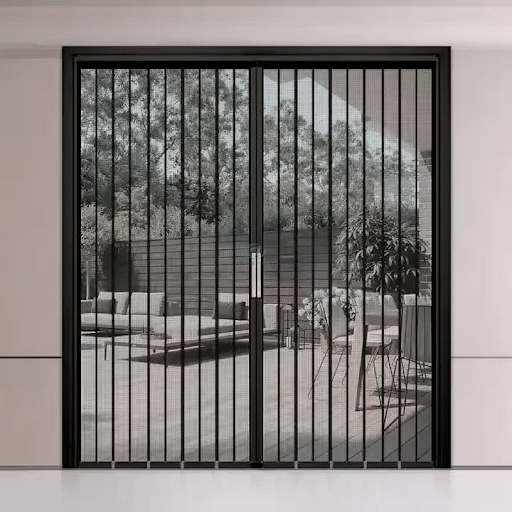

High Wind & Seasonal Storm Care
Pleated screen doors are designed for ventilation and insect protection, not structural wind abatement. During severe windstorms, heavy rainfall, or winter freezing conditions, keep the screen fully retracted into its aluminum side cassette. Housing the screen protects the mesh and internal cord network from structural strain.
8. Technical Product Specifications
| Specification Feature | Technical Details |
| Product Category | Custom Folding Retractable Screen Door / Pleated Fly Screen |
| Primary Frame Material | Extruded Architectural Aluminum Alloy (6063-T5 / 6061-T6) |
| Surface Finish | Corrosion-Resistant Exterior Powder Coating |
| Frame Color Choices | White, Black, Modern Gray, Bronze |
| Mesh Material | High-Tensile PET / Fiberglass Pleated Mesh (UV-Stabilized) |
| Mesh Color Choices | High-Visibility Black, Charcoal Gray |
| Operational Mechanism | Cord-Guided Tensionless Accordion System (Stop-At-Any-Position) |
| Bottom Track Height | Ultra-Low Profile (3 mm to 5 mm) Barrier-Free Threshold |
| Closure Mechanism | Continuous Full-Height Magnetic Strip Seal |
| Available Configurations | Single Panel (Left/Right), Double Panel (Center Latch), Bilateral Free-Slide |
| Customization | Millimeter-accurate made-to-measure sizing |
| Mounting Options | Recess Mount (Inside Jamb) or Face Mount (Outside Surface) |
| Shipping Threshold | Free door-to-door delivery on qualifying orders above $899 USD |
9. Transform Your Home with Retract Screens
Investing in a Custom Folding Screen Door from Retract Screens bridges the gap between indoor comfort and outdoor living. By replacing bulky traditional screens with accordion-pleated technology, architectural-grade aluminum frames, and trip-free low-profile tracks, you gain effortless insect protection without compromising panoramic outdoor views or clean interior aesthetics.
Whether you are fitting out expansive bi-fold glass walls, upgrading a set of French doors, or creating an airy flow through sliding patio doors, custom folding screen doors deliver a clean, durable, and modern screening solution tailored precisely to your home.
