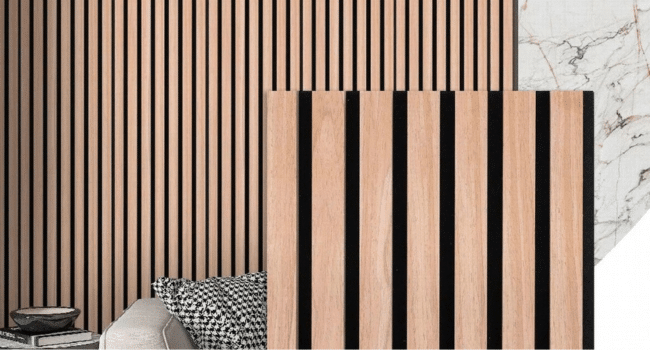

Acoustic wood slat wall panels have quickly become one of the defining interior design trends across Australian homes. Brands like Wall Forma have spearheaded this movement, offering homeowners from Sydney townhouses to coastal Queensland builds a simple way to introduce warmth, tactile timber texture, and acoustic dampening into open-plan living spaces.
Featuring natural timber veneers bonded to high-density PET polyester acoustic felt, Wall Forma panels transform plain plasterboard walls into striking focal points. However, when it comes to integrating a media centre—specifically mounting a large 55 to 85-inch television—homeowners often run into a practical dilemma.
Because Wall Forma acoustic panels consist of a 9mm felt backing and 12mm–13mm decorative timber slats, they form a 21mm–22mm non-structural outer layer. Hanging a heavy television directly onto the felt or timber slats using standard plasterboard wall plugs will inevitably cause crushed panels, sagging brackets, or worst of all, a fallen TV.
To mount your screen safely without damaging your Wall Forma wall features, you must anchor your mounting bracket into the structural wall framing beneath. This comprehensive guide covers Australian wall construction, the three most reliable mounting methods, step-by-step instructions, and key electrical compliance rules you need to know.
1. What Lies Behind Your Wall Forma Panels?
Before picking up a drill, you need to identify the substrate framing behind your acoustic panels. Residential walls in Australia generally fall into three categories:
- Timber Stud Framing (Most Common): Standard Australian timber framing uses 90mm x 45mm radiata pine studs spaced at either 450mm or 600mm centres, lined with 10mm Gyprock (plasterboard).
- Light-Gauge Steel Studs: Commonly used in high-rise apartments, inner-city units, and modern townhouse developments across Melbourne, Sydney, and Brisbane. Steel studs require toggle anchors or timber backing plates rather than standard timber coach screws.
- Masonry / Double Brick: Prevalent in Western Australian residential builds, older character homes, and lower levels of modern builds. Masonry provides solid anchoring anywhere on the wall using heavy-duty masonry anchors or concrete screws.
Because Wall Forma panels add roughly 22mm of depth over your plasterboard, standard hardware screws packaged inside TV bracket boxes are almost always too short. You will need longer, heavy-duty fasteners to reach deep into the structural framing behind the panel layer.
2. Choosing the Right Mounting Method
There are three main approaches to installing a television over a Wall Forma acoustic feature wall. The right choice depends on whether your panels are already installed or if you are planning a fresh installation from scratch.
Method A: Direct-Through Mounting with Rigid Spacers
(Best if your Wall Forma panels are already fully installed)
If your Wall Forma panels are already mounted using panel adhesive or screws, you can install the TV bracket directly over the top. However, you must use rigid spacers (steel sleeves, heavy nylon collars, or custom hardwood blocks) behind the mounting bracket.
Why spacers are essential: If you tighten a flat metal bracket against soft PET felt and thin timber slats, the clamping force will crush the felt unevenly and bow the timber slats. Rigid spacers pass through clearance holes in the Wall Forma panel, pressing firmly against the Gyprock wall face so the clamping load transfers directly into the timber studs.
Method B: The Cut-Out Recess Method
(Best for heavy full-motion articulated arm mounts)
If you plan to use a heavy full-motion arm bracket—which allows the TV to pull out, swivel, and tilt—cutting a clean rectangular recess into the Wall Forma panel is often the neatest solution.
Why cut out: Articulated brackets exert significant rotational torque on wall fasteners when extended. Mounting the bracket directly to the wall frame inside a neat cutout eliminates leverage against the decorative slats and lets the TV retract closer to the wall.
Method C: Structural Plywood Backer Board
(Best for new media wall builds before panels go up)
If you are planning your media wall from scratch, the cleanest approach is to install a sheet of 12mm to 18mm structural plywood across your wall studs before installing your Wall Forma panels.
Why plywood backing works best: A structural plywood backing plate provides continuous timber support across the entire wall area. You can cut your Wall Forma panels neatly around the TV bracket footprint, or drive bracket screws anywhere into the plywood without needing to align with 450mm stud centres later.
3. Step-by-Step Installation Manual
Below is the complete walkthrough for Method A (Direct-Through Mounting with Spacers), which is the most popular choice for completed DIY projects.
Recommended Tools & Materials
- Deep-scan electronic stud finder
- Heavy-duty spirit level (600mm+)
- Cordless drill with pilot bits and spade/hole-saw bits
- Socket wrench set
- Heavy-duty M8 x 90mm or M8 x 100mm timber coach screws with washers (Zenith or Ramset)
- Rigid cylindrical spacers (~22mm length, matching the depth of your Wall Forma panels)
- Painter’s masking tape and pencil
- Safety glasses and dust mask
Step 1: Locate and Verify Timber Stud Positions
Use a deep-scan stud finder over your Wall Forma panels to detect the timber studs behind the plasterboard.
If the stud finder has difficulty scanning through the PET felt and timber slats, locate studs on an adjacent unpanelled wall section and measure across using standard Australian 450mm or 600mm centre spacing.
Confirm stud locations by carefully pushing a thin finishing nail or micro drill bit through the felt gap between two slats. When you meet firm resistance after ~32mm (22mm panel depth + 10mm Gyprock), you have hit solid timber.
Step 2: Mark and Level Your TV Bracket
Position your TV bracket against the Wall Forma wall at your desired height (eye level when seated is generally 950mm to 1050mm from the floor to screen centre).
Use your spirit level to align the bracket perfectly horizontally.
Mark the mounting hole positions directly on the panel face, ensuring at least two primary mounting holes line up with timber studs.
Step 3: Drill Clearance Holes for Rigid Spacers
At each marked mounting point, drill a clearance hole through the Wall Forma panel (slat or felt). The hole diameter must match the outside diameter of your rigid spacers (typically 18mm–22mm).
Insert the rigid spacers into the drilled holes until they rest flush against the plasterboard surface behind the panel.
Important Check: Ensure the spacer end sits flush with the front face of your Wall Forma slats. If the spacer is too short, the bracket will crush the panel; if it is too long, the bracket will float visibly off the wall.
Step 4: Pre-Drill Pilot Holes into the Timber Framing
Pass a 5mm timber drill bit through the centre of each spacer and drill a pilot hole into the timber stud behind the plasterboard.
Drill at least 45mm to 50mm deep into the timber stud. Pre-drilling prevents dense Australian radiata pine studs from splitting when driving home M8 coach screws.
Step 5: Mount and Torque the TV Bracket
Align your TV mounting bracket over the inserted spacers.
Insert your M8 x 90mm (or 100mm) timber coach screws with washers through the bracket slots and spacers into the pre-drilled pilot holes.
Drive the screws home using a socket wrench. Recheck level before fully tightening.
Stability Test: Grab the mounted bracket with both hands and apply firm downward weight. There should be zero play, twist, or flex.
4. Cable Concealment & Australian Electrical Safety Rules
A media feature wall loses its appeal if power cords and AV cables trail down the front of clean timber slats. Routing cables cleanly requires careful attention to Australian regulations.
Route 1: In-Wall Cavity Routing (The Cleanest Finish)
For hollow plasterboard timber-framed walls, low-voltage signal cables (HDMI, optical audio, ethernet) can be run safely inside the wall cavity behind the Gyprock.
Cut a wall opening behind where the TV screen will sit, and another opening down low behind your media console or entertainment unit.
Install standard Australian brush plates (such as Clipsal or Deta wall plates available at local hardware stores).
Feed your low-voltage AV cables through the cavity using a yellow-tongue flooring strip or cable puller.
Crucial Australian Regulatory Warning: AS/NZS 3000 Wiring Rules
Safety & Legal Compliance: Under Australian Standard AS/NZS 3000:2018 (Wiring Rules), running standard 240V appliance flexible power cords (such as your TV’s main power lead) inside an internal wall cavity is illegal. Doing so poses a fire risk and can void your home building insurance policy.
The Compliant Solution: Hire a licensed Australian electrician (“sparky”) to install a recessed 240V power point (GPO) directly behind your TV position. Recessed wall outlets (like the Clipsal 25R series or Arun recessed wall boxes) sit flush within the wall cavity, allowing your TV plug to connect without pushing the TV forward off the wall.
Route 2: Surface Cable Concealment in Felt Gaps
If cutting into the wall cavity is not practical (such as on solid double brick walls or rental properties), take advantage of Wall Forma’s panel design.
Because Wall Forma panels use a dense black PET felt backing, slim black low-voltage cables (like ultra-thin HDMI leads) can be tucked neatly into the black channels between the timber slats. Held in place with tiny cable clips or friction, the wires blend into the shadow lines of the acoustic backing.
5. Panel Maintenance Around Media Systems
Once your TV is securely mounted over your Wall Forma feature wall, a few simple maintenance habits will keep the installation looking fresh:
- Managing Dust around Vents: Televisions generate heat and airflow from internal cooling fans, which can pull ambient dust toward the surrounding PET felt. Gently vacuum the felt channels around your TV once a month using a soft brush attachment.
- Heat Dissipation: Ensure your TV sits at least 30mm to 50mm forward from the acoustic panel face (which naturally occurs when using a standard bracket over spacers). This ensures adequate airflow behind the display and prevents heat buildup against the natural timber veneer.
- Cleaning Timber Veneers: To clean the wood slats around your TV mount, wipe them down with a slightly damp microfibre cloth. Avoid harsh chemical cleaners or aerosol sprays that could discolour the natural timber finish or stain the PET felt backing.
6. Summary Checklist: Do’s and Don’ts
| Recommended Practice | Avoid These Pitfalls |
| Do anchor TV brackets directly into structural timber studs, steel studs, or masonry. | Don’t rely on hollow wall anchors or liquid adhesive applied directly to felt or slats. |
| Do use rigid metallic or nylon spacers when mounting over Wall Forma panels. | Don’t bolt brackets over panels without spacers; it will crush the slats and loosen over time. |
| Do use longer M8 coach screws (90mm–100mm) to account for the extra 22mm panel depth. | Don’t use standard 40mm factory screws supplied in the TV bracket box. |
| Do hire a licensed electrician to install a recessed GPO for 240V TV power. | Don’t drop 240V flexible power leads or extension cords inside wall cavities. |
| Do double-check levels and test bracket load-bearing stability before hanging the screen. | Don’t attach heavy full-motion cantilever arms without verifying solid timber stud anchoring. |
By taking the time to locate structural framing, using rigid spacers to protect your acoustic panels, and following Australian electrical guidelines, you can enjoy a floating media setup that complements your Wall Forma acoustic feature wall safely and stylishly.
