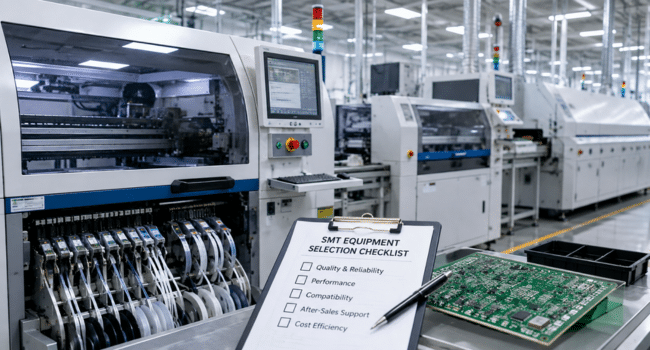

A circuit board moves through many steps before it reaches a customer, from design and manufacturability review to fabrication, assembly, testing, compliance checks, and shipping. Surface mount technology, usually shortened to SMT, covers solder paste printing, component placement, reflow, and inspection. It also represents a major equipment investment for most electronics production lines.
That makes the buying decision difficult for smaller teams. You may be comparing machines you have never operated using specifications measured under unfamiliar test conditions. A clear process makes the decision more manageable: define your production needs, check how the machines work together, test performance with your own boards, and compare the full cost of ownership.
Key Takeaways
- Fit matters more than headline speed. Placement rates are usually published under ideal conditions. A slower machine that handles your component range and changeovers well may produce more finished boards.
- Budget beyond the machine. Feeders, software, tooling, training, spare parts, and support all affect the cost and reliability of the line.
Where SMT Fits in the Wider Build Flow
A typical SMT line includes solder paste printing, pick-and-place equipment, reflow soldering, inspection or quality control, and the inline conveyors that move boards between stations. Downstream processes may include through-hole assembly, functional testing, and final box build.
Because these stations run in sequence, the line moves at the pace of its slowest step, not its fastest placement machine. When researching SMT equipment manufacturers, begin with a broad group of vendors and narrow it according to product mix, production volume, board size, component range, and standards support. Focus on suppliers that can demonstrate experience with work similar to yours.
Define Your Production Profile First
Before reading specification sheets, document what you actually build. Record the number of different assemblies produced each week, the volume of each product, changeover frequency, smallest component, largest connector or shielding can, board dimensions and thickness, panel format, and whether placement is single-sided or double-sided.
Add operational requirements as well. Consider the number and experience level of your operators, the available floor space, and the workmanship standards your customers expect. IPC J-STD-001, which defines requirements for soldered electrical and electronic assemblies, is a common reference in these discussions. A high-mix operation running dozens of short jobs will need different equipment from a high-volume facility producing a few stable products.
Core Line Building Blocks and What to Ask
Solder Paste Printer
Paste deposition affects many downstream defects. Ask about print repeatability, supported stencil sizes, tooling options, under-stencil cleaning, and recipe management. If you plan to use solder paste inspection, confirm whether the printer can use inspection feedback to adjust print parameters.

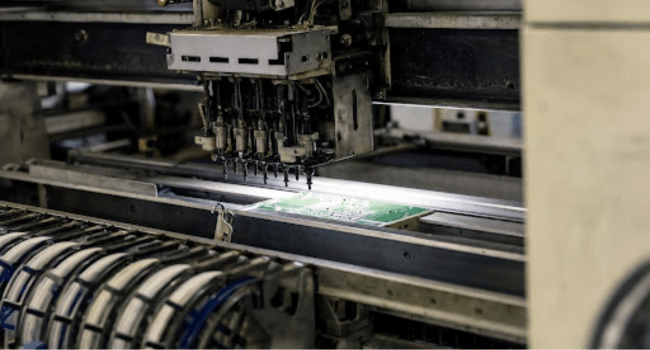

Pick-and-Place Equipment
Confirm the machine’s component range at both extremes, available feeder positions, board-size limits, and support for odd-form parts. Ask whether feeders can be prepared offline and how long a typical product changeover takes. Published placement rates are measured under controlled conditions, so request an estimate based on your actual bill of materials rather than relying on the maximum components-per-hour figure.

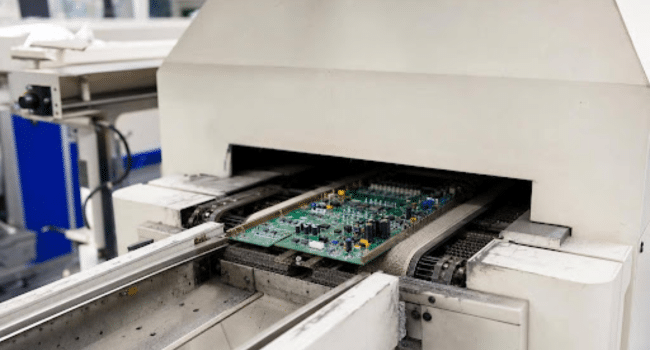

Reflow Oven
Ask about zone count, thermal profiling, recipe management, conveyor-width adjustment, and nitrogen use if your process requires it. Review power consumption during production, standby, and batch gaps. Vendor claims about lower energy or nitrogen use should be compared with your expected operating schedule and local utility costs.
Inspection Equipment
Three-dimensional solder paste inspection, or SPI, checks paste deposits before placement. Automated optical inspection, or AOI, checks components and solder joints after reflow. X-ray inspection may be necessary for parts with hidden joints, such as ball grid arrays. Confirm that each inspection system can handle your full board or panel size in one pass and that its programming requirements suit your staffing level.
Check Interoperability and Data Standards
A modern line supports two types of communication. The first is horizontal, from one machine to the next. It allows equipment to indicate that a board is ready and pass information about that board. IPC-HERMES-9852 supports this handoff and replaces the older SMEMA electrical interface with richer data exchange.
The second type is vertical communication between production equipment and factory software. IPC-CFX, or Connected Factory Exchange, covers this layer. Hermes and CFX are complementary: one coordinates board movement across the line, while the other shares production data with higher-level systems. Some suppliers also support SEMI SMT-ELS standards.
Do not accept a standards logo as proof of compatibility. Ask which versions are supported, what functions have been implemented, and whether extra software licenses are required. During a demonstration, request message logs showing the machines exchanging real board and production data. Also note that IPC-9850, an older machine performance benchmark, is no longer maintained, so figures tied to it should be treated as legacy references.
Build a Balanced Shortlist
Turn your production profile into a set of screening questions, then send the same questions to every supplier. A shortlist that includes both large full-line manufacturers and high-mix specialists will make the trade-offs between speed, flexibility, footprint, and support easier to see.
Depending on the application, buyers often evaluate placement equipment from manufacturers such as Yamaha, Fuji, Panasonic, ASMPT, Mycronic, and Europlacer. Heller is one established reflow equipment supplier, while Koh Young is commonly considered for inspection. These are examples rather than endorsements. Product capabilities vary widely within each manufacturer’s range, so compare individual configurations instead of relying on general brand reputation.
Ask each supplier to document component limits, throughput assumptions, feeder capacity, supported data standards, warranty terms, service locations, and typical spare-parts lead times. Comparable answers are more useful than polished demonstrations built around different test conditions.
Prove Performance Before You Buy
Run a structured demonstration or factory acceptance test using your own boards and bill of materials, not a supplier’s simplified demonstration panel. This is especially useful for prototype PCB assembly, where product mix and changeover needs can strongly influence equipment requirements.
Verify the full board-size envelope, including support and clamping. Observe how the machine handles fine-pitch and odd-form components, and ask an operator to complete a full changeover without help from an applications engineer. Measure actual placements per hour on your product, reflow profile stability across consecutive boards, and AOI false-call rates on known-good assemblies.
If interoperability matters, review Hermes and CFX message logs during the test. Record measurable acceptance criteria in the purchase agreement, including the test method, required results, who will approve them, and what happens if the equipment does not meet them. This turns broad sales claims into requirements both parties can verify.
Calculate Total Cost of Ownership and Room to Grow
The purchase price is only the starting point. Include software licenses, programming tools, feeders, nozzles, stencils, board-support tooling, installation, operator training, maintenance training, calibration, and consumables. Ask about spare-parts availability, expected response times, local service coverage, and exactly what a support agreement includes.
Utilities also affect operating cost. Check compressed-air quality and volume, electrical requirements, exhaust needs, and nitrogen consumption where applicable. Confirm whether facility upgrades are required before installation and include those costs in the comparison.
Finally, consider realistic growth. Can the placement machine accept another head or more feeder capacity? Can you add inline SPI, AOI, or a second placement machine without relocating the entire line? Right-sizing current capacity while leaving physical, electrical, and software headroom is usually more practical than paying for output you are unlikely to use for several years.
Avoid Common Buying Traps
- Choosing equipment by peak components-per-hour figures that do not reflect your products.
- Accepting vague performance criteria that cannot be measured or enforced.
- Overlooking changeover time in a high-mix production environment.
- Buying without a clear local support path or dependable spare-parts supply.
- Assuming Hermes or CFX support without verifying the implemented functions.
- Failing to plan operator and maintenance training.
Make the Decision in the Right Order
A disciplined sequence reduces risk: define the production profile, check line balance and interoperability, prove performance with your own boards, and then compare total cost and support. Ask every supplier the same questions and document the answers.
You do not need to become an SMT specialist before starting the process. You do need measurable requirements and a clear acceptance plan. Equipment chosen this way is more likely to fit the work, support efficient changeovers, and deliver predictable production after installation.
