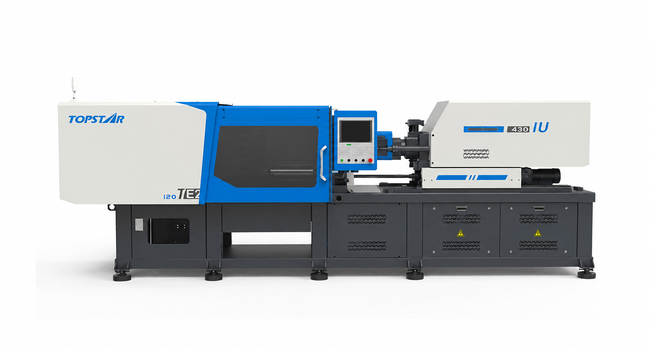

Thick-walled products often serve as the ultimate test of injection molding quality. A surface that appears smooth at first glance may conceal deeper issues—such as uneven material filling, inconsistent cooling, or insufficient holding time—that compromise the stability of the outer surface. Consequently, sink marks and shrinkage remain two of the most common and troublesome defects in thick-walled injection-molded parts. These issues do more than mar the appearance; they weaken the part’s structure, reduce dimensional accuracy, and undermine customer confidence in the entire production process. At Topstar, we encounter this challenge daily from the machinery’s perspective. A high-performance injection moulding machine does far more than inject plastic into a mold cavity. It precisely controls pressure, temperature, timing, flow balance, and cooling methods, ensuring consistency in thick-walled parts from the initial sample to full-scale mass production.
The Root Causes of Sink Marks and Shrinkage in Moulding Machine and Thick-Walled Products
Sink marks and shrinkage typically occur when the outer layer of the part hardens before the internal material has fully cooled and set. This phenomenon is particularly pronounced in thick-walled parts, as the part’s core retains high temperatures for an extended period. As the internal material cools and contracts, it pulls the surface inward, resulting in visible depressions, uneven wall thickness, or a reduction in dimensions. This problem rarely stems from a single factor; rather, it results from an interplay among material properties, mold design, cooling balance, and machine settings. Therefore, an injection moulding machine must do more than force material into the cavity; it must maintain adequate pressure during the holding phase, ensure melt stability during filling, and facilitate a controlled cooling cycle that allows the part to solidify uniformly.
A well-designed injection moulding machine helps mitigate these issues by enabling operators to precisely control the entire molding cycle. Such machines can decouple the filling and holding phases, maintain stable pressure, and ensure repeatable cycle times. This level of control is critical for thick-walled products. The machine must maintain material density within the cavity while avoiding over-packing, which could otherwise induce internal stress.
Muolding Machine Process Settings That Directly Affect Filling and Surface Quality
The most effective way to minimize sink marks is to optimize the machine’s holding phase. For thick-walled products, the initial injection does not complete the molding process. The machine must continue to apply pressure after the filling stage to inject additional material, thereby compensating for the natural shrinkage that occurs as the part cools. Holding pressure is one of the most critical settings on an injection moulding machine. If the holding pressure is too low, the cavity loses material support, leading to surface sink marks; if it is too high, the part may develop internal stresses, flash, or stress marks at the gate. Therefore, the machine must apply the correct holding pressure at the right time and maintain it for the appropriate duration. This value is not fixed; it depends on factors such as wall thickness, gate size, material type, and part geometry.
Why is uniform temperature balance crucial?
Cooling is often a hidden cause of sink marks and shrinkage. Many manufacturers focus heavily on the injection and holding phases, yet the part’s shape continues to evolve even after the cavity appears full. In thick-walled products, the core cools much more slowly than the outer surface. If the imoulding machine and mold system cannot effectively manage this cooling differential, internal shrinkage occurs after the surface has hardened, resulting in visible sink marks or measurable shrinkage.
While the moulding machine itself does not directly control the cooling process, it plays a vital role in maintaining a stable cooling cycle. It must ensure process repeatability, allowing the mold sufficient time to dissipate heat uniformly during each cycle. Fluctuations in cycle time lead to inconsistencies in part quality. A stable injection moulding machine helps the mold operate within a predictable temperature range. Topstar’s perspective is straightforward: thick-walled products require rigorous thermal control. The moulding machine must facilitate this by providing repeatable timing, stable process control, and the precision needed to prevent premature demolding.
Material Handling and Melt Consistency for Thick-Walled Parts
The material itself also influences the risk of sink marks and shrinkage. Different resins exhibit varying shrinkage rates, and thick-walled products tend to amplify these differences. Consequently, the moulding machine must properly prepare the melt before injection. Inconsistencies in melt temperature, plasticizing quality, or material uniformity result in uneven shrinkage in the finished part.
A stable melt promotes more uniform filling. When resin enters the cavity at a consistent temperature and viscosity, it flows more predictably into thicker sections, allowing the holding pressure to function more effectively. Conversely, if the melt temperature is too low, the material may freeze prematurely, reducing filling efficiency. Excessive melt temperatures can prolong cooling times or increase post-molding stress. Injection moulding machines must carefully manage this balance. At Topstar, we help customers view the quality of thick-walled parts as the result of a systemic process. The moulding machine must maintain consistent melt quality, as stable melt behavior is the foundation for consistent part molding.
Pressure control and adaptive algorithms for reliable sink mark prevention
Among all machine functions, pressure control has the most direct impact on sink marks. Thick-walled parts require sufficient pressure during the holding phase to compensate for the volume loss that occurs during cooling. The injection moulding machine must deliver this pressure in a controlled manner and maintain stability throughout long production runs.
This is where adaptive control plays a crucial role. In real-world production, no two cycles are exactly alike. Material temperatures fluctuate slightly, environmental conditions change, and mold resistance varies subtly over time. Adaptive injection moulding machines detect these changes and automatically adjust motion or pressure parameters. This enhances process stability and reliability while reducing the need for constant manual adjustments. Topstar places great importance on this capability because customers need more than just a machine that works well on day one; they need a machine that consistently produces high-quality parts despite frequent mold changes, material batch variations, and shift rotations.
