In industrial settings, compressed air is often referred to as the “fourth utility.” Up to 30% of the generated air and the electricity to produce it can be lost through leaks, misuse, and system inefficiency. These losses are frequently invisible and accepted as operational costs. A systematic compressed air audit is the definitive tool for identifying and quantifying these losses, transforming an opaque utility into a manageable, optimized asset.
The Anatomy of an Industrial Air System
A compressed air system is more than just air compressors. It is an interconnected network comprising generation, treatment, distribution, and end-use equipment. Inefficiency in any component degrades the entire system’s performance.
The generation stage, with its compressors and controls, is the primary energy consumer. For example, a facility may run multiple air compressors simultaneously without proper sequencing, causing all to operate at partial load—a highly inefficient state. Treatment equipment, such as filters and dryers, ensures air quality but introduces a pressure drop.
A clogged air filter or an oversized desiccant dryer can create a 10-15 psi drop, forcing compressors to work harder. The distribution piping delivers the air supply but is often riddled with leaks. Finally, end-use devices define the required flow rate and air pressure. A holistic audit examines all these elements, as isolated fixes can be counterproductive.
The Compressed Air Analysis Methodology
Professional compressed air analysis follows a structured, data-driven approach. It begins with defining system demand profiles, measuring actual flow rates, and energy consumption over a typical operational period. This establishes a baseline.
Auditors then install data loggers on key compressors and in the distribution piping to record air pressure, power draw, and flow. This data reveals system dynamics: how compressor controls interact, the magnitude of pressure fluctuations, and the baseline of unusable air. For instance, data may show frequent, short compressor cycles during non-production hours, indicating significant leaks or inappropriate after-hours usage.
Simultaneously, a detailed physical inspection occurs. The compressor room is assessed for ambient conditions and maintenance records. Air filters, dryers, and drains are checked. The distribution network is surveyed for problematic piping layouts and inappropriate uses, such as using a corroded, undersized main line that acts as a permanent bottleneck for the entire plant’s air supply.
Quantifying the Big Three: Leaks, Pressure, and Misuse
The audit data crystallize into three primary loss categories.
1. Leak Detection
Auditors use ultrasonic detectors to pinpoint air leaks inaudible over plant noise, often compiling a tagged list with estimated cost. Common examples include leaking couplers, failed drain valves on air tanks, and cracked hoses on idle equipment. An air leak audit alone identifies savings covering the audit cost.
2. Excess Pressure Drop
Pressure loss between the compressor discharge and the point-of-use forces the entire system to operate at a higher pressure. This increases energy consumption by approximately 1% per 2 psi. The audit traces pressure drops to specific issues like a bank of coalescing filters that haven’t been changed in years, or a 100-foot hose on a grinder that is only ½-inch in diameter, starving the tool of air.

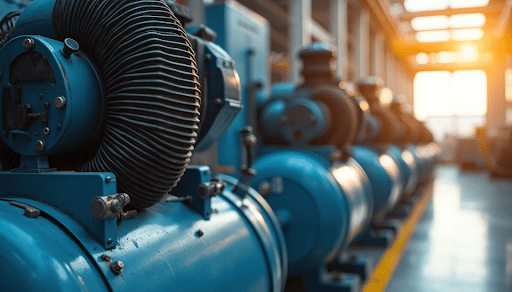

3. Identification of Inappropriate Uses
Using compressed air for cooling, open blowing, or as a low-pressure air supply is profoundly inefficient. For example, a plant may use open-air lances to clean workstations or cool parts, tasks better suited for dedicated blowers or fans. The audit quantifies this “artificial demand,” which increases flow rates and energy consumption unnecessarily.
Optimizing Generation and Treatment Efficiency
With demand-side losses quantified, the audit scrutinizes the supply side. Advanced electrical system solutions for compressor controls are evaluated.
Outdated or mismatched controls cause compressors to fight each other. This leads to inefficient modulation or wasteful unloaded running. An audit might find that a modern variable-speed drive compressor is running constantly to compensate for leaks, while an older fixed-speed unit cycles on needlessly.
Heat recovery systems are assessed for feasibility, as up to 94% of compressor electrical input can be recovered for space or process heating. A simple example is ducting hot air from an air-cooled compressor into a warehouse during winter months, offsetting heating fuel costs.
Air treatment is reviewed: is the desiccant dryer oversized or regenerating too frequently? A dryer sized for peak demand may waste energy purging constantly during average flow conditions. Optimizing this equipment reduces parasitic pressure drop and energy waste.
The Actionable Report and Implementation Roadmap
A professional compressed air system audit concludes with a comprehensive report. It provides a clear roadmap, prioritizing actions by return on investment.
Recommendations are specific. Repair tagged leaks, resize and loop the distribution piping, replace inefficient nozzles with engineered blow-offs, and implement a compressor sequencing schedule.
For instance, the report may specify installing a flow controller on the main header to stabilize pressure at 90 psi, allowing the compressors to shut down instead of running unloaded. Reputable audit providers will also model projected outcomes, showing the expected improvement in system efficiency.
The Bottom Line
A compressed air audit is a diagnostic investment with a rapid, measurable payback. It replaces assumptions with data, revealing hidden energy losses that silently erode profitability.
The resulting improvements deliver direct reductions in energy costs. Beyond cost savings, benefits include increased production uptime, improved air quality for tools and processes, and a lower carbon footprint.
