Helical piles are used to support foundations where conventional excavation or deep foundation methods may be difficult, disruptive, or time-consuming. However, selecting a helical pile system involves more than choosing a shaft diameter or helix size. The correct configuration depends on the soil profile, required loads, shaft stability, and long-term corrosion exposure.
For foundation projects, the selection process should begin with ground conditions and structural loads, then move toward the appropriate shaft type and protection requirements. This approach helps avoid specifying a pile that meets one requirement but creates problems during installation or long-term service.
How Do Soil Conditions and Foundation Loads Affect Selection?
The first step is to establish how the foundation will transfer loads into the ground.

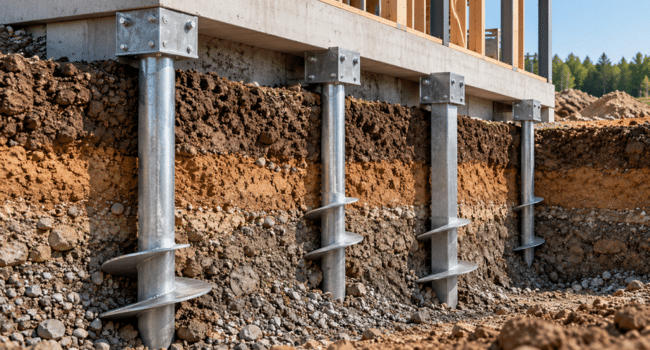

Helical piles use steel shafts fitted with helical bearing plates. As the pile is rotated into the soil, the plates advance toward the required bearing strata. The final configuration must provide sufficient geotechnical resistance while keeping stresses within the structural limits of the shaft, couplings, and pile head connection.
Compression, tension, and lateral loads create different design requirements.
For compression foundations, the pile must resist downward loading without excessive settlement or shaft buckling. If the upper soil layers are very soft, shaft stability becomes particularly important, even when the helices reach competent bearing material.
For tension applications, such as uplift resistance or structural anchoring, the foundation must resist withdrawal forces. A smaller shaft may be practical where it can reach suitable bearing strata and the surrounding soil provides adequate support.
Lateral loading introduces another consideration. Helical piles are generally slender foundation elements, so resistance to horizontal forces depends heavily on shaft stiffness and soil support near the surface.
These conditions help determine which helical pile systems deserve further evaluation before the final dimensions and components are specified.
When Are Square-Shaft Helical Piles a Practical Choice?
Square-shaft helical piles are commonly considered for tension-dominant applications and foundations where penetration into dense bearing material is important.
Their solid steel section provides a relatively compact profile, allowing the lead section to advance through the soil with less displacement than many larger tubular shafts.
This can be useful for uplift anchors, foundation tie-downs, and installations where access or equipment capacity is limited.
Square shafts also transfer installation torque efficiently, making them suitable for projects where the relationship between torque and axial capacity is part of the approved design method.
However, their relatively slender profile limits bending stiffness.
If a square-shaft pile passes through a substantial layer of very soft soil, its resistance to buckling must be checked. The same limitation becomes important when significant lateral loading is expected.
A square shaft should therefore not be selected solely because it penetrates soil efficiently or requires less installation equipment. Its suitability depends on whether the surrounding soil provides sufficient lateral support and whether the complete shaft and coupling assembly can carry the design loads.
When Do Round-Shaft or Grouted Helical Piles Make More Sense?
Round-shaft helical piles become more relevant when the foundation requires greater shaft stiffness, particularly under compression or combined loading.
Compared with slender square-shaft configurations, appropriately sized tubular shafts generally provide greater bending stiffness and resistance to buckling.
This advantage is important where piles extend through soft upper soil layers before reaching competent bearing strata.
For example, a foundation supporting a structure over deep, weak near-surface soil may require a round shaft even when the helical plates can provide adequate bearing resistance at depth.
Round shafts can also be considered where moderate lateral forces or changes between compression and tension loads affect the design.
However, a larger shaft does not automatically provide sufficient lateral capacity. The actual soil conditions, unsupported length, bending demands, and pile-head connection still determine whether the system is suitable.
Grouted helical pile systems provide another option when additional shaft support or resistance is required.
In these systems, a grout column surrounds part of the steel shaft. Depending on the configuration, the grout can improve shaft stability and contribute additional resistance through interaction with the surrounding soil.
This can be useful in soft ground or restricted-access foundation projects where a conventional ungrouted shaft cannot meet the required performance.
The choice between square, round, and grouted configurations should therefore follow the specific limitation that needs to be addressed: penetration efficiency, shaft stability, lateral resistance, or additional load-transfer capacity.
How Should Corrosion Protection Be Specified?
Corrosion protection is part of the foundation design because helical piles are expected to remain in service underground for many years.
The required protection depends on soil chemistry, moisture, groundwater conditions, and the intended design life of the structure.
Hot-dip galvanizing is a common protection method for steel helical piles. The zinc coating provides a sacrificial barrier that helps reduce corrosion of the underlying steel.
However, specifying galvanized steel alone does not establish the expected service life under every soil condition.
Highly acidic soils, low soil resistivity, aggressive groundwater, or other corrosive environments may require additional evaluation. Depending on the findings, the design may incorporate greater steel thickness for corrosion allowance, additional protection measures, or a different foundation configuration.
The protection requirements must also cover more than the main shaft.
Helical plates, welded joints, couplings, and pile-head components are all part of the installed foundation. Exposed connections and areas where protective coatings may be damaged during installation require particular attention.
For galvanized components, the applicable coating standard, minimum coating requirements, and inspection scope should be stated in the project specification.
The final corrosion allowance and protection strategy must be checked against the expected environmental exposure and required service life rather than relying on a general claim of corrosion resistance.
What Must Be Confirmed Before the Pile System Is Finalized?
Once the shaft type and corrosion requirements have been established, the complete pile configuration must be checked against the approved foundation design.
The first consideration is the helical plate arrangement. Plate diameter, number, spacing, and installation depth influence how the pile transfers loads to the soil. These details cannot be determined from shaft type alone.
The shaft and coupling specifications must also be confirmed. A pile may have adequate theoretical soil-bearing capacity but still be limited by the structural resistance of its shaft or connections.
Pile-head details are equally important because they transfer compression, tension, and any applicable lateral forces between the foundation and the supported structure.
Installation requirements must then be defined.
Installation torque can help evaluate axial capacity where a validated torque-to-capacity relationship applies. However, the required torque, correlation factor, minimum embedment, and acceptance criteria must be established for the selected system. Torque readings alone do not replace the applicable design checks or specified load testing.
Before procurement, the project team should confirm material grades, component dimensions, corrosion protection, inspection documentation, and installation acceptance requirements. This helps ensure that the supplied components match the system evaluated during foundation design.
Matching the Helical Pile System to Project Requirements
Selecting a helical pile system requires matching the foundation configuration to the conditions it will actually face.
Square-shaft piles are practical candidates where efficient penetration and tension resistance are priorities and adequate soil support is available. Round-shaft piles become more relevant when shaft stiffness, compression stability, or lateral demands are important. Grouted configurations may address additional stability or load-transfer requirements under suitable project conditions.
Corrosion protection must also be specified according to soil exposure and the intended design life. The final selection should bring together geotechnical capacity, structural resistance, connection details, and installation verification rather than treating these as separate decisions.
For projects requiring different shaft and connection arrangements, Baolai Steel offers round-shaft, square-shaft, and DRIVECAST helical pile configurations that can be evaluated against the project’s approved specifications. Matching these available options to verified load conditions, installation requirements, and corrosion protection needs provides a clearer basis for finalizing the foundation system.
