A convincing scientific figure is not necessarily an accurate one. The safest workflow is designed to catch errors before publication.
AI scientific illustration can save manual layout work on graphical abstracts, workflows, mechanism diagrams, and model architectures. The risk is that image generators optimize for convincing visuals, not for protecting every scientific detail.
A figure can look professional while containing a reversed arrow, an invented label, a missing experiment stage, or a parameter that changed during rendering. These problems are easy to miss because the overall design still appears polished.
The answer is a workflow that separates scientific facts from visual decisions. These seven mistakes show where generated research figures go wrong and how to prevent them.
Mistake 1: Pasting an Entire Paper Into One Prompt
A paper contains more information than one figure can communicate. If the abstract, methodology, results, and discussion enter one prompt, the model may emphasize a secondary detail while omitting the intended sequence.
Start by defining the communication task. Is the figure showing a mechanism, experimental workflow, graphical abstract, anatomy, or imaging result? Then extract only the required subjects, stages, labels, relationships, and quantitative details.
A workflow should identify its reading direction and ordered steps. A graphical abstract may follow problem → method → result, while a mechanism diagram defines the trigger, change, and outcome. A compact brief leaves less room for unsupported choices.
Mistake 2: Letting Visual Style Override Scientific Facts
Directions such as “cinematic,” “glossy,” or “3D render” may suit advertising images, but shadows, perspective, and decorative textures can obscure scientific relationships.
The source material should remain the only authority for facts. The visual layer may control palette, spacing, typography, and composition, but it should never introduce a measurement, mechanism, structure, or conclusion that is absent from the research.
When information is uncertain, omission is safer than a plausible invention.
Mistake 3: Using the Same Layout for Every Scientific Figure
Different figure types require different visual rules. A graphical abstract benefits from a single, obvious reading path. An anatomical illustration must preserve orientation, tissue layers, and relative position. A surgical diagram needs the requested operative order without extra instruments or invented steps.
Scientific imaging also depends on modality-specific contrast, staining, channels, scale bars, and natural irregularity. A flat infographic may remove what makes the image meaningful.
A useful system should classify the request first and apply figure-specific constraints before rendering. Style presets should adapt to the communication task instead of forcing every subject into one template.
Mistake 4: Checking Beauty but Not Diagram Logic
Visual review asks whether a figure looks balanced. Scientific review asks whether it still describes the source correctly.
For a neural-network architecture, automated checks can extract stage numbers, block counts, filter counts, kernel sizes, residual connections, and bottleneck operations from the methodology. The generated result can then be compared against those facts.
This can catch a jump from Stage 2 to Stage 4, a 3×3 convolution changed to 3×1, an incorrect bottleneck order, or a residual connection merged at the wrong location.
It helps to divide review into three roles: a planner that captures all required content, a stylist that improves the presentation without changing facts, and a critic that compares the result with the original constraints.
Mistake 5: Flattening the Figure Too Early
PNG and JPEG store pixels rather than structure. After flattening, correcting a label may require repainting its background, while moving a node can break several arrows.
SVG is a better working format because it can preserve editable text, shapes, connectors, groups, and positioned assets. A workflow stage can remain a group containing a box, icon, heading, and description, while its connector remains a separate path.
The figure can then be revised in Illustrator, Inkscape, or draw.io and scaled without blurring text or simple geometry. PNG should be an export, not the only editable source.
Mistake 6: Regenerating Everything to Fix One Component
Full regeneration is unpredictable. Fixing one icon may create a spelling error, change the layout, or remove a previously correct label.

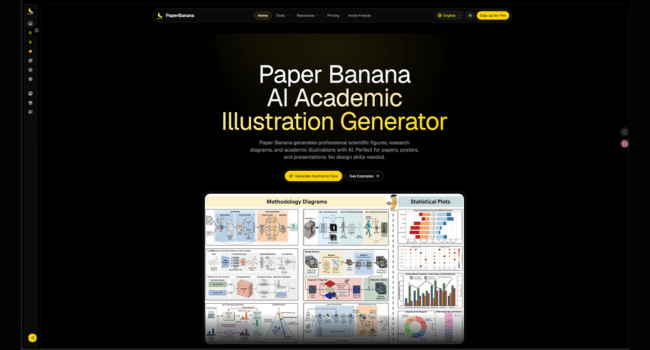

A component-first workflow offers more control. Tools such as paper banana can treat the first generated image as a draft rather than the final file. A segmentation model such as SAM3 identifies icons, text regions, nodes, arrows, and panels. Individual regions can then be cropped, while a background-removal model such as RMBG-2.0 prepares transparent assets for reuse.
The cleaned components are assembled into SVG, allowing one inaccurate icon to be replaced without disturbing the figure. Clear spacing matters because overlapping objects are harder to separate reliably.
Mistake 7: Skipping the Final Human Review
Syntax validation can confirm that an SVG opens and its references resolve. It cannot confirm that a mechanism is true or an arrow expresses the intended relationship.
Before publication, the researcher should verify four areas:
- Content: Every required stage and structure is present, while unsupported claims are absent.
- Logic: Arrows, feedback loops, and sequences match the source.
- Readability: Labels are concise, correctly spelled, and legible at the final page size.
- Accessibility: Meaning is communicated through labels and shapes as well as color.
Extra caution is necessary when a figure relates to primary evidence. AI may create an explanatory diagram of a microscopy experiment, but a generated image must not be presented as a real micrograph. The same boundary applies to radiographs, histology slides, gels, blots, and other experimental outputs.
A Better Preflight Routine
Before accepting an AI-generated scientific figure, use a short preflight routine:
- Compare every visible claim with the supplied research source.
- Read all labels, units, numbers, and legends at normal viewing size.
- Trace each arrow from its origin to its target.
- Open the SVG in the editor that will be used for final revisions.
- Confirm that important text, nodes, and connectors are independently editable.
- Export a test PNG and check its aspect ratio, resolution, and small-text clarity.
This routine is faster than discovering an error after peer review, poster printing, or presentation export.
Conclusion
The biggest risk in AI scientific illustration is not an obviously bad image. It is a convincing image with a small scientific error that survives into publication.
Reliable results come from controlling the process around generation: define the figure’s purpose, protect the source facts, apply rules for the correct figure type, validate technical details, keep the output editable, and require human approval.
Used this way, AI becomes a drafting and production assistant rather than an authority on the science. That distinction allows researchers to work faster without giving up control of what the figure actually says.
