A Fabricator’s Guide to Selecting the Right Welding Fixtures

Talk to any seasoned welder and you’ll In all likelihood listen the equal factor: the actual magic occurs long before the primary spark. Getting pieces lined up, steady, and correct before hanging the arc may be the difference among a easy, solid weld and a headache later on. That’s where fixtures for welding quietly step in.

They don’t commonly get the consideration that flashy welding machines or robot structures do, however furniture are the unsung heroes of the shop ground. They preserve components regular, cut down on mistakes, and make repeat jobs a ways much less of a chore. For a small garage workshop or a complete-scale manufacturing line, having the right fixture setup isn’t just convenient—it’s what takes welding quality to a whole new degree.

Why Fixtures Matter in Welding

Welding is all about precision. A shift of just a couple millimeters can mean weak joints, inspection failures, or expensive rework. Fixtures for welding are designed to tackle those problems by:

• Holding components firmly in place.
• Keeping alignment and spacing consistent.
• Minimizing distortion from heat and stress.
• Speeding up repeat jobs with reliable setups.


Instead of wrestling with clamps, double-checking measurements, and hoping nothing slips mid-weld, a fixture locks the entirety down. That offers welders the self assurance to recognition on the weld itself as opposed to babysitting the setup.

Common Types of Welding Fixtures

Not all stability is created for the same purpose. Depending on what kind of work you do, you may need something simple or a customized layout that appears to have come directly from the engineering laboratory. The most common types include.

1. Rigid Fixtures

• Made from steel or cast iron.
• Built to handle high heat and heavy use.
• Perfect for industrial work where parts are big and accuracy really matters.

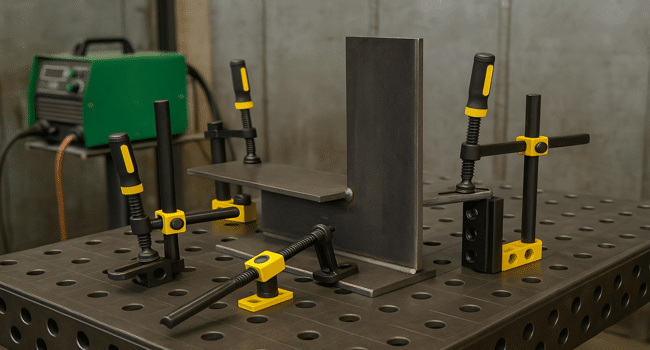

2. Modular Fixtures

• Come with swappable pieces like clamps, blocks, and plates.
• Let you adjust setups without buying new gear every time.
• Great for shops that juggle different kinds of fabrication projects.


3. Adjustable Fixtures

• Built with movable parts you can fine-tune.
• Handy for working with materials of varying sizes.
• Strike a balance between sturdy and flexible.


4. Dedicated Fixtures

• Designed for one specific part or assembly.
• Deliver unmatched precision and consistency.
• Common in mass production but not versatile for other jobs.


Comparison Table: Types of Welding Fixtures

Fixture Type	Best For	Pros	Cons
Rigid	Heavy-duty, industrial jobs	Extremely strong, long-lasting	Not versatile, heavy to move
Modular	Diverse projects in one workshop	Flexible, reusable, cost-efficient	May require training to set up
Adjustable	Mixed-size materials	Adaptable, precise adjustments	Slightly less stable than rigid
Dedicated	Mass production, high precision	Excellent accuracy, repeatability	Expensive, single-use design

Benefits of Using Welding Fixtures

Fixtures aren’t just about holding things still. They change how a shop runs day to day. A few key benefits:

• Accuracy you can trust: Less chance of parts slipping out of place.
• Faster setups: Especially for repeat jobs.
• Better productivity: Welders spend extra time welding, less time fiddling.
• Improved protection: Fewer shifting components suggest fewer accidents.
• Reduced waste: Fewer mistakes translate into less scrap.


For stores seeking to hold tempo in aggressive industries, these aren’t simply perks—they’re income.

Challenges and Limitations

Of course, no tool is perfect. Fixtures come with their own set of hurdles:

• Cost: Good fixtures, especially custom-made ones, don’t come cheap.
• Space: Big setups can hog valuable floor space.
• Learning curve: Modular or adjustable designs take some practice.
• Flexibility issues: A dedicated fixture is amazing for one job, useless for others.


The trick is locating the sweet spot that suits your save’s desires—balancing precision, cost, and versatility.

Real-World Applications of Fixtures

Fixtures show up in just about every industry where welding precision matters:

• Automotive: Keeping frames and parts perfectly aligned.
• Aerospace: Where even the tiniest misalignment isn’t acceptable.
• Shipbuilding: Stabilizing massive assemblies during long weld runs.
• Construction: Making sure structural steel stays square and solid.


Even smaller stores rely on them. Having furnishings for welding makes it simpler to supply expert outcomes that customers observe and accept as true with.

Tips for Choosing the Right Fixture

Thinking about upgrading your setup? A few things to weigh before you invest:

• Look at your workflow: Are you commonly repeating jobs or doing one-offs?
• Size topics: Larger components want heavier-duty fixtures.
• Flexibility: Modular structures can shop cash if you tackle lots of tasks.
• Budget wisely: Upfront fee hurts much less while you store on transform later.
• Plan for increase: Pick furniture that can scale with future demand.


Future of Welding Fixtures

With robotics and automation becoming Greater commonplace in fabrication, fixtures aren’t staying static either. Newer designs encompass sensors and smart positioning structures that regulate on the fly, making them perfect partners for computerized welding. Some innovators, like Denaliweld, Are even exploring fixture solutions that integrate directly with robot structures to push efficiency further.

But one element hasn’t modified: no matter how advanced your device is, you still want a solid setup. Without reliable furnishings for welding, even the most excessive-tech welder can’t supply constant effects.

External Resources

• American Welding Society – Fixture Guidelines
• Fabricating & Metalworking Magazine – Fixture Insights
• The Fabricator – Welding Productivity Articles

Conclusion

Fixtures may not look impressive Compared to excessive-cease welding machines, however they’re the spine of any true keep. They preserve elements aligned, cut down on errors, and allow welders consciousness on doing exceptional paintings. From small modular structures to heavy-responsibility business rigs, the proper fixture can enhance both productiveness and precision in a huge way.

At the stop of the day, making an investment in furniture for welding isn’t pretty much making existence easier—it’s about constructing a recognition for reliability and craftsmanship. And in a trade in which popularity matters as plenty as the weld itself, that’s really worth more than any unmarried device.
